Model
|
Brand
CORSAIR
Model

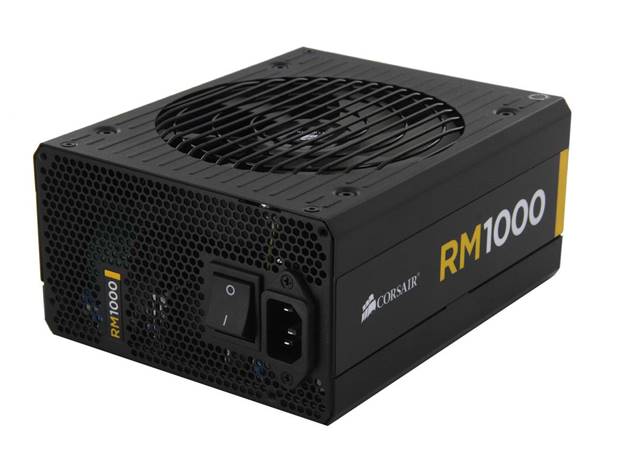

RM1000
Series
RM
Series
Details
|
Type
ATX12V
v2.4 and EPS 2.92
1000W
1
Active
Single
8 x
6+2-Pin
12
No
Haswell Support
Yes
No
Full
Modular
92%
Energy-Efficient
80
PLUS GOLD Certified
Input Voltage
100
- 240 V
Input Frequency Range
47 -
63 Hz
Input Current
6.5A
- 13A
Output
+3.3V@25A,
+5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3.0A
>100,000
Hours
Approvals
FCC,
ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S
Dimensions
3.39"
x 5.91" x 7.09"
Weight
8.6
Features
|
Connectors
1 x
ATX Connector
2 x EPS Connector
2 x Floppy Connector
11 x 4-Pin Peripheral Connector
8 x PCI-E Connector
12 x SATA Connector
Features
The latest ATX12V v2.31 and EPS 2.92 standards and it is
backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
4th generation Intel Core processor Ready (Intel Haswell and Z78 motherboards).
80 PLUS Gold certified, delivering over 92% energy efficiency at real world
load conditions.
The completely modular cable system allows you to use only the cables you need.
Low-profile, flat cable design reduces air friction and helps maximize airflow
through your computer's chassis.
High-quality Japanese capacitors provide uncompromised performance and
reliability.
Active Power Factor Correction (PFC) with PF value of 0.99.
Universal AC input from 100-240V.
Over-voltage and over-current protection, under-voltage protection, and short
circuit protection provide maximum safety to your critical system components.
